Home > Audio Devices > Sound Cards > SIIG SoundWave LP-000022-S2 Sound Card

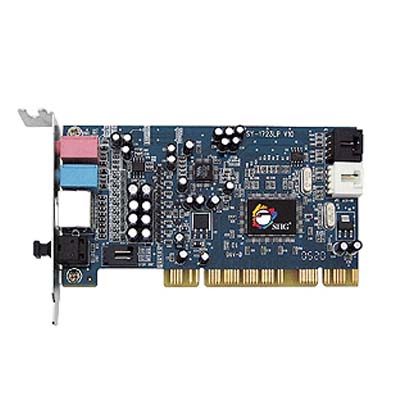

SIIG SoundWave LP-000022-S2 Sound Card

Product Code: SCLP000022S2 | Ships To: USA ONLY

Out of stock

About this Product

  • S/PDIF optical output provides true 5.1-ch sound (* Requires DVD playback software, S/PDIF decoder, Toslink fiber optic cable and 5.1-ch speakers)
  • High-definition 5.1 channel surround sound transforms your PC into a home theater system
  • Perfect audio upgrade for DVD playback, listening to MP3 or other music, gaming, and more!
  • Reduces unwanted static and noises from D/A processing
  • Easily control your multimedia output by using the integrated volume-up, volume-down, speaker mute and microphone mute buttons
  • CD and aux input (MPC3)
  • Internal Digital output via 2-pin, Molex connector
  • Universal PCI interface enables this board to be installed in PCI-X slots

    Key Features

    • Compliant with AC’97 rev. 2.3 and PCI 2.2 specifications
    • Chipset: VIA 1723 + 1618 audio codec processor
    • Supports 24-bit/96kHz digital outputs and 20-bit/48kHz analog connections
    • Supports EAX 2.0, A3D 1.0, and Microsoft DirectSound 3D +
    • Digital out: S/PDIF fiber optic (Toslink)
    • Dedicated headphone out (3.5mm jack): 18bits / 48Khz
    • Max headphone jack output (into 32ohm load): 60mW
    • 20-bit high quality DAC/ ADC
    • THD (Rated @ 1Khz): 0.006%
    • Signal to Noise Ratio: -90dB
    • Dynamic Range: 89.8dB
    • Stereo Crosstalk: -82.9dB
    • Power consumption: 1.27W (12V/60mA - 5V/110mA)
    • Certifications/Standards: FCC, CE, RoHS

    System Requirements

    • Windows XP/Vista/7/8 and 10
    • Pentium III or higher PC with an available PCI or PCI-X slot

  • SIIG SoundWave LP-000022-S2 Sound Card


    Our Price:

    Only $39.95 USD

    Product Currently Unavailable
