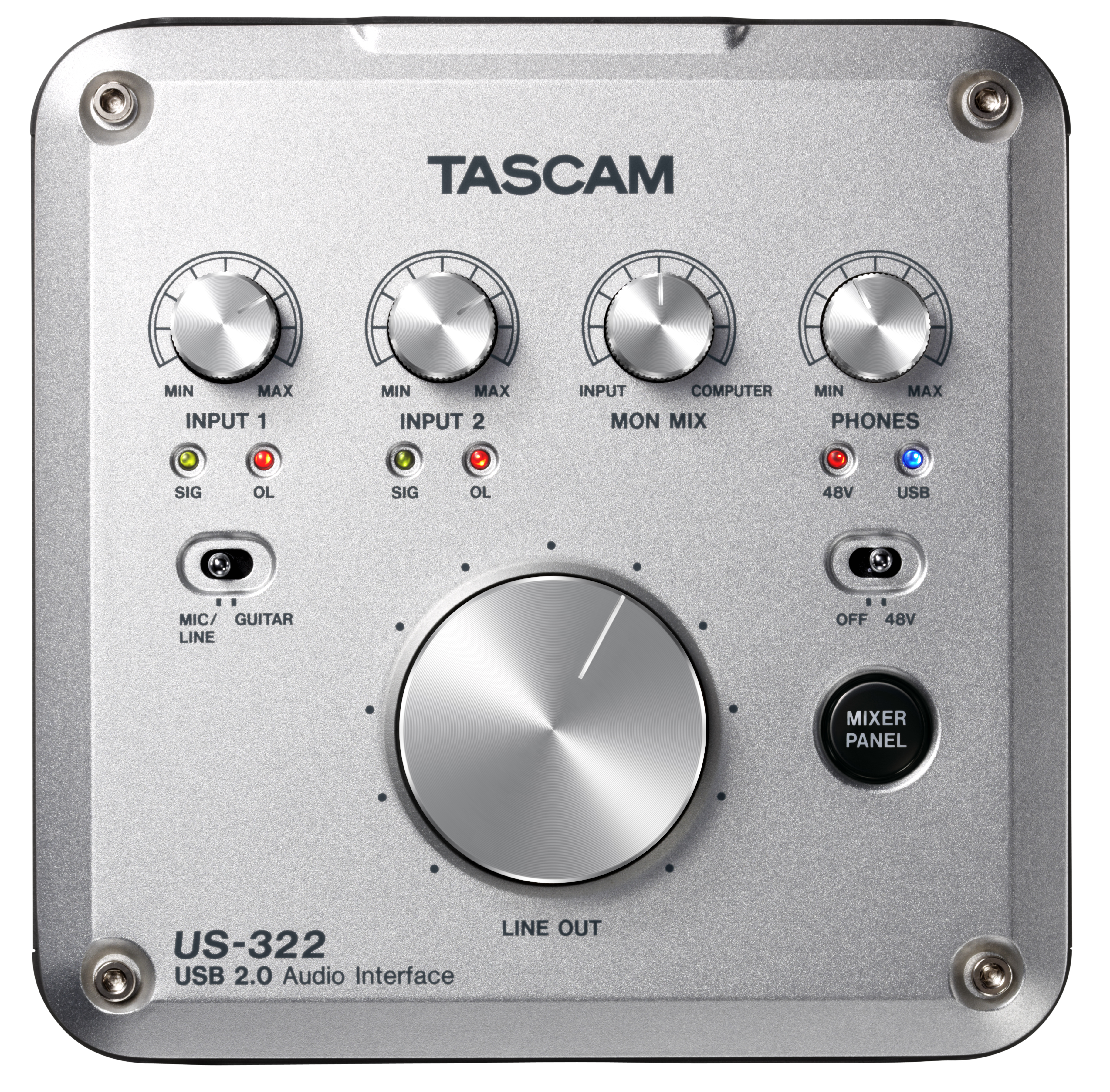

Tascam US-322 USB Audio Interface with DSP Mixer

Product Code: AUDUS322 | Ships To: World Wide Shipping Available

About this Product


To ensure superior sound, TASCAM organized months of tests and trials to design the HDDA mic pre-amplifier. Manufactured with a discrete structure and select premium parts, the HDDA pre-amp achieves wider frequency response (10Hz to 68kHz), high S/N ratio, low noise and low THD+N.

In the process of creating music, many engineers have started utilizing high-resolution formats while recording to ensure the best quality sounds. The US-322 is perfectly suited for these high-quality minded recordings.

The US-322 is designed with two XLR with +48V phantom power and two TRS inputs. Having both options for condenser mics and line level inputs ensures you are getting the best possible sound and lowest-noise when recording. In addition, INPUT-1 can connect any high-impedance equipment directly, like a guitar.

Main Features

  • High-quality HDDAHigh Definition Discrete Architecture) mic pre-amps
  • Up to 24bit/96kHz recording
  • Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power supply
  • Low-latency monitoring via DSP mixer
  • On-board digital mixer(DSP mixer) delivers two operation modes
  • On-board digital effects(DSP effects)(DSP effects can use on 44.1/48kHz operating)
  • Dedicated "MIXER PANEL" button recalls DSP mixer with one-click
  • Oversized LINE OUT volume knob
  • Two TRS analog balanced outputs
  • Two RCA analog unbalanced outputs
  • 18mW+18mW headphone output
  • Desktop design provides highly stability and usability
  • Aluminum body provides premium looks and luxurious feel
  • USB bus-powered for mobile recording

    What's Included

  • CD-ROM (includes dedicated driver)
  • USB cable (1.5m)
  • DVD-ROM (Cubase LE6)
  • Insert sheet for Cubase LE
  • Warranty card

    Key Features


    • Supported sampling frequency: 44.1/48/88.2/96kHz
    • Supported bit rate: 16/24bit (Internal operation is 24bit)
    • Connector: 6.3mm(1/4") stereo phone jack
    • Maximum output level: 18mW+18mW or more(THD+N 0.1% or less, 32ohms loaded)
    • Connector: USB B type 4-pin
    • Format: USB2.0 HIGH SPEED mass storage class
    • Power: USB bus powered (5V, Max 500mA)
    • Dimensions: 140(W)×42(H)×140(D)mm
    • Weight: 500g
    • Bundle software: Cubase LE6

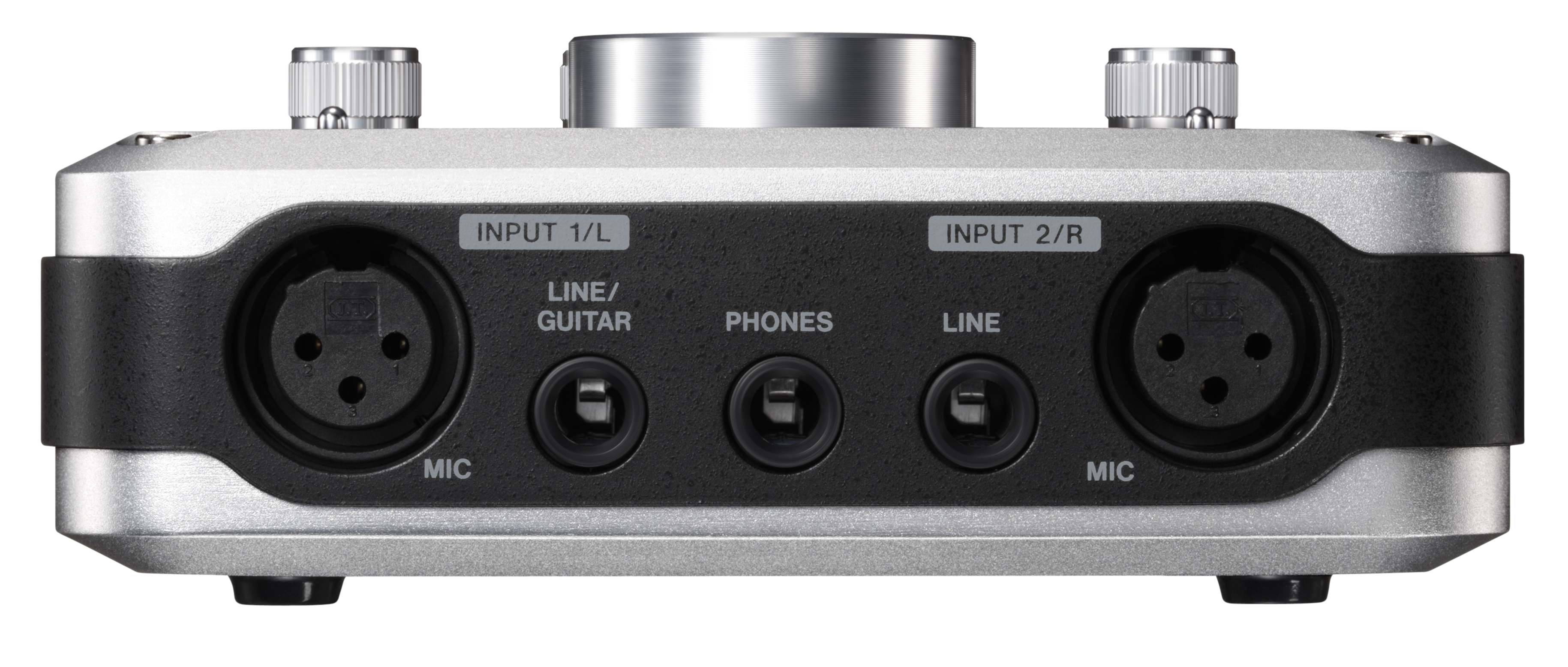

      Analog Audio Inputs

    • MIC IN: (INPUT 1/L, 2/R) XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
    • LINE IN: (INPUT 1/L, 2/R) 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
    • LINE IN: (LINE I/O 3-4) RCA pin-jack (When set to "INPUT" at LINE I/O switch)

      Digital Audio Inputs

    • COAXIAL: (DIGITAL IN) RCA pin-jack (When set to "COAXIAL" at DIGITAL IN switch)
    • OPTICAL: (DIGITAL IN) TOS (JEITA RC-5720C) (When set to "OPTICAL" at DIGITAL IN switch)

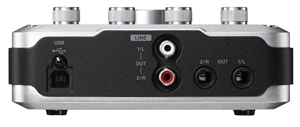

      Analog Audio Outputs

    • LINE OUT: (LINE OUT 1/L, 2/R) 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
    • LINE OUT: (US-322:LINE I/O 1-2) RCA pin-jack (When set to "OUTPUT" at LINE I/O switch)

      Digital Audio Outputs

    • COAXIAL: (DIGITAL OUT) RCA pin-jack
    • OPTICAL: (DIGITAL OUT) TOS (JEITA RC-5720C)

    System Requirements


    • Windows XP/Vista/7/8 and 10
    • Works on Mac OS X 10.4 to 10.11
    • 1 x Available USB Port
